Shenzhen Longgang Sanlipu FMCS System Case

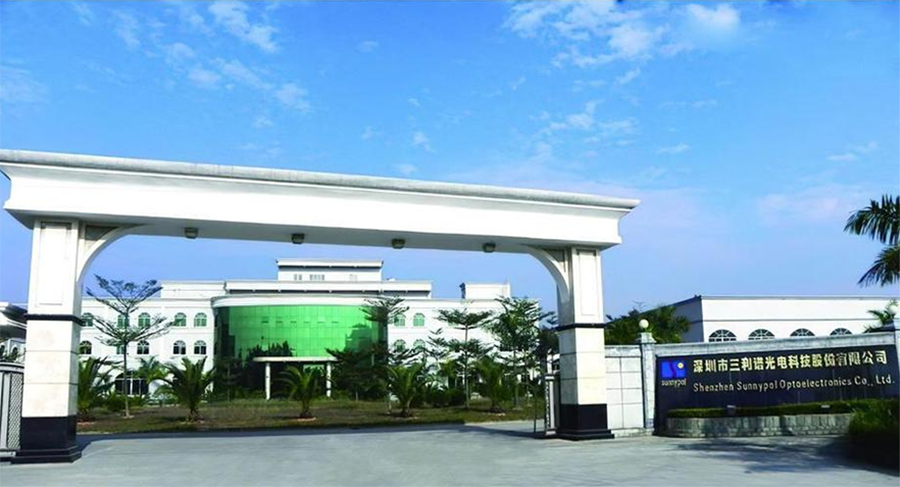

Customer Name: Shenzhen Sanlipu Optoelectronics Technology Co., Ltd.

Sanlipu is a national high-tech enterprise. The company is committed to the research and development, production and sales of polarizers. It is one of the best solution providers in the domestic polarizer industry.

Sanlipu has production bases in Guangming, Shenzhen, Hefei, Anhui, Putian, Fujian, and Longgang, Shenzhen. Its products are widely used in TVs, monitors, laptops, mobile phones, instruments, car displays, wearable displays, OLED displays, 3D glasses, polarized sunglasses and other fields.

Project Name: Shenzhen Longgang Sanlipu FMCS System

Project Content:

1. Purification air conditioning units: 16 MAU air conditioners, 2 AHU air conditioners, RCU 3 air conditioners

2. Indoor DCC dry coil system

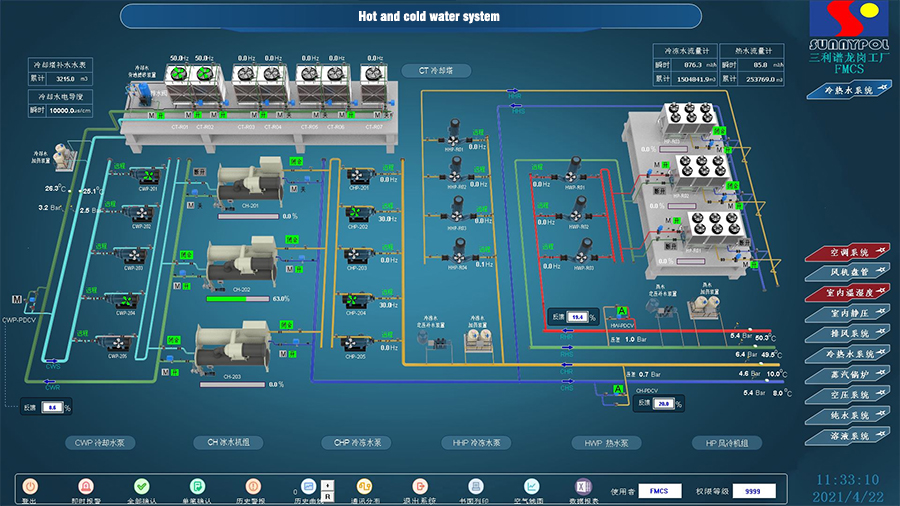

3. Cold and hot water system

4. Steam boiler system

5. CDA air compressor system

6. General exhaust system

Integrated system:

1. RO pure water system

2. Wastewater system

3. Waste gas system

4. Tank area solution system

5. HV vacuum system

Destination: Longgang, Shenzhen

Product technical features

1. Realize constant temperature and humidity control of clean room: control the cold water valve, hot water valve, humidifier through the air supply temperature and humidity sensor signal Opening, thereby achieving constant temperature and humidity control of the clean room;

2. Realize constant pressure control of the clean room: control the opening of the inverter through the air supply pressure sensor signal, thereby achieving constant pressure control of the clean room;

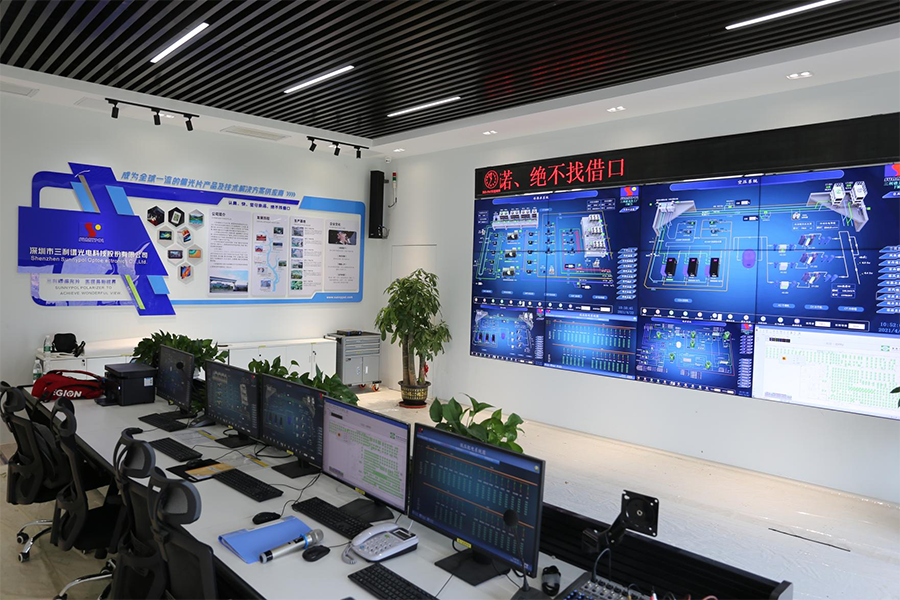

3. Realize the one-key start and stop function of the power station: click the one-key start and stop button on the central control room screen to achieve the interlocking control of water valves, water pumps, and ice machines, efficient control, achieve energy saving goals and reduce the number of enterprise managers;

4. Improve the stability of each system: have redundant servers and ring network structure to ensure that the collected data is real-time and not lost, so as to ensure that each system can operate stably and reliably.

5. Extend the service life of equipment: the equipment is centrally managed, and the management personnel can be reminded in time to maintain the equipment;

6. Safety operation standard management: according to different positions, different authority levels are assigned to facilitate maintenance and management.
