Low Voltage Frequency Converter

XL/XM

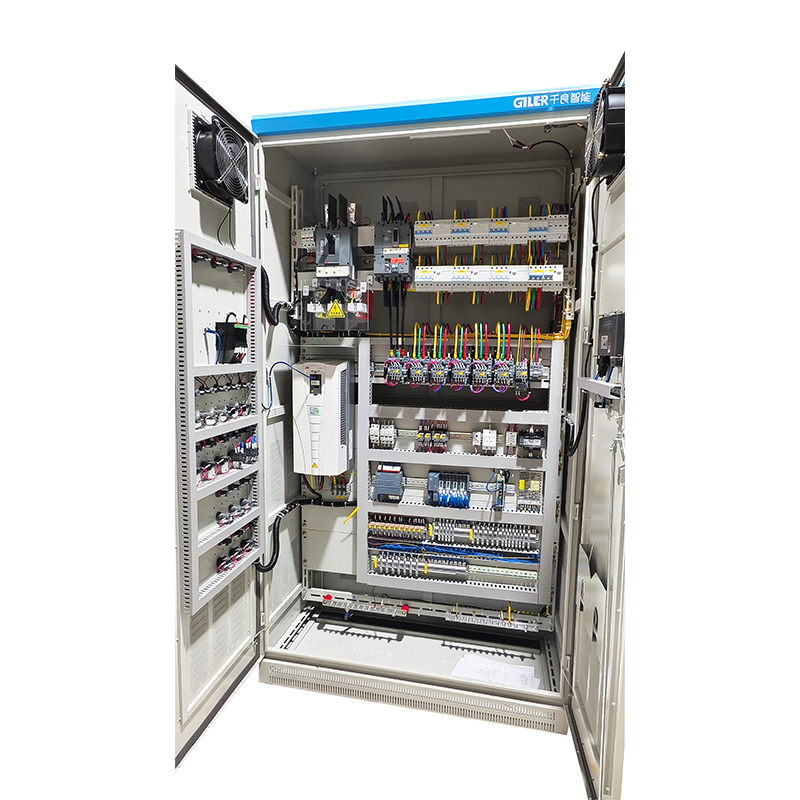

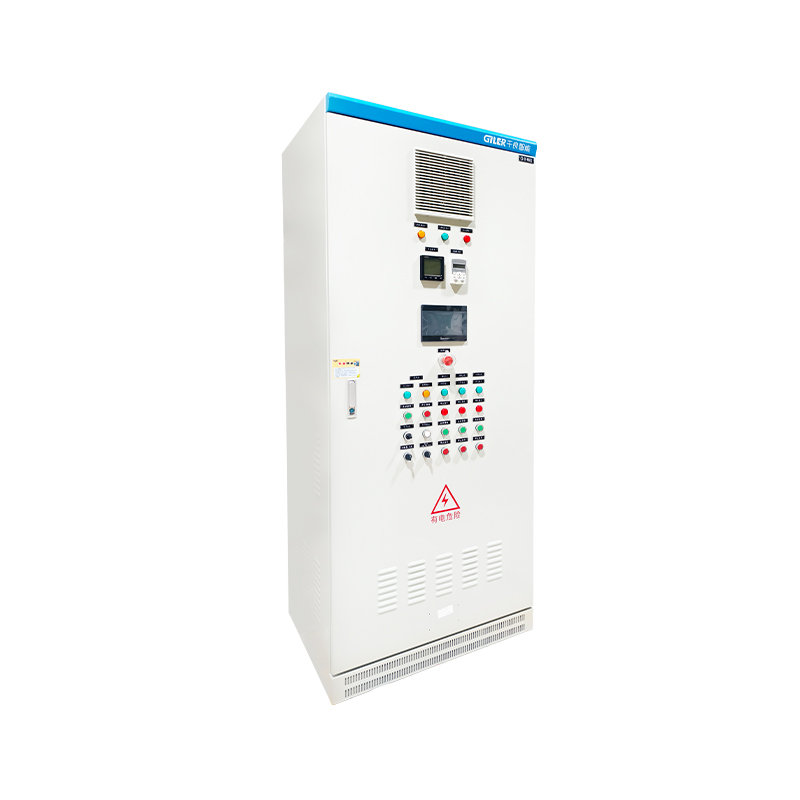

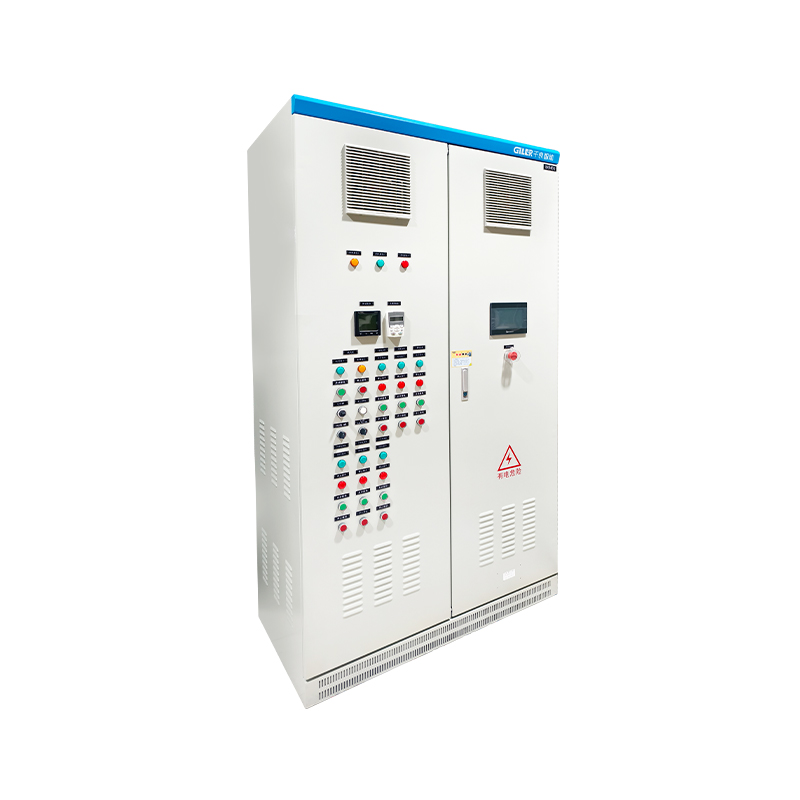

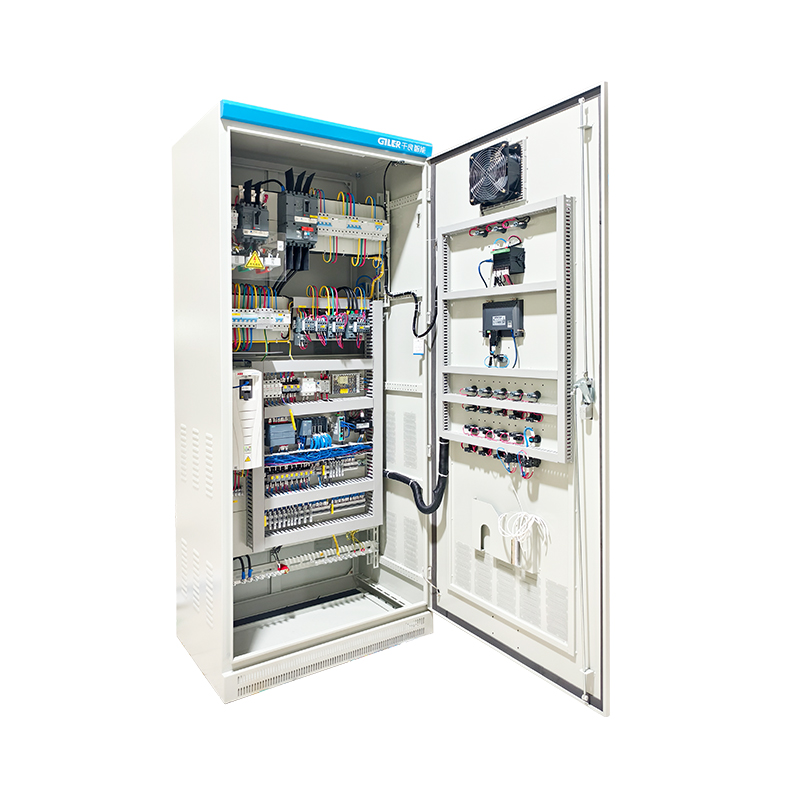

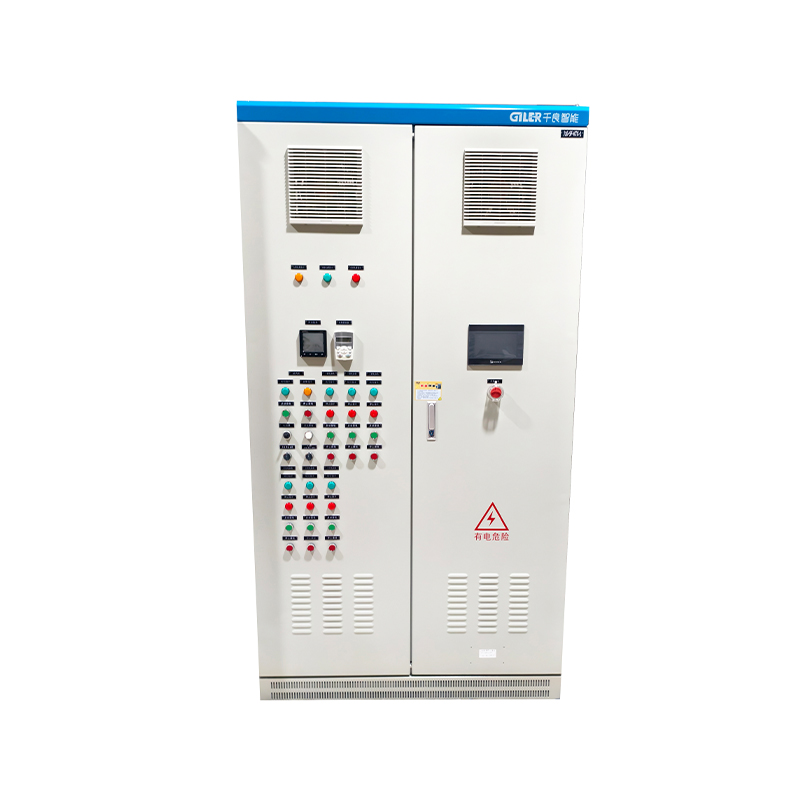

Low-voltage frequency converter cabinet is an electrical complete set of equipment that integrates frequency converter, control components and protection devices, and is mainly used for speed control of three-phase AC motors. Its core function is to achieve precise regulation of motor speed by adjusting the output frequency, and the voltage level is usually lower than 690V.

Consult

Features Technical Indicators Overall Dimension

1. High efficiency and energy saving: adjust the motor power in real time according to the load, saving 20%~60% energy compared with traditional power frequency operation. Support soft start function, reduce the starting current impact, and extend the life of the motor.
2. Precise control: fast dynamic response: millisecond frequency adjustment, adapt to sudden loads (such as instantaneous impact of ball mills). Multi-mode operation: local/remote control switching, support PID closed-loop regulation (such as constant pressure water supply).
3. Safe and reliable: comprehensive protection functions: overcurrent, overvoltage, undervoltage, overheating and short-circuit protection. Anti-interference design: built-in (or optional) reactors and filters to suppress the impact of harmonics on the power grid.
4. Flexible expansion: modular design, can integrate PLC and touch screen to achieve automatic control. Wide power coverage (1.5~400kW), suitable for equipment of different sizes.
Applicable scenarios

1. Industrial manufacturing:

Mining and metallurgy: speed regulation and energy-saving control of ball mills, crushers, and belt conveyors.

Chemical and papermaking: flow and pressure regulation of pumps, fans, and mixing equipment.

2. Public utilities:

Water treatment system: constant pressure water supply of water pumps and aerator control of sewage treatment.

HVAC: frequency conversion speed regulation of central air conditioning cooling tower fans and circulating water pumps.

3. Special equipment:

Hoisting machinery: smooth start and stop and positioning control of bridge cranes and elevators.

Production line transmission: synchronous speed regulation of packaging machinery and textile equipment.

Parameter Category	Technical Indicators
Rated Voltage	AC 380V/690V (50/60Hz)
Output Power	1.5~400kW (Customized According To Motor Requirements)
Control Accuracy	Frequency Resolution 0.01Hz, Speed Range 1:1000 (Vector Control)
Protection Level	Cabinet IP20~IP40
Communication Interface	RS485, Modbus, Profibus (Supports Integration With Host Computer Or DCS System)
Casing Material	Working Temperature -10℃~+40℃, Humidity ≤95% (No Condensation)
